Lube Oil Unit (LOU)

API design and manufacture capacity; best stability and tightness;

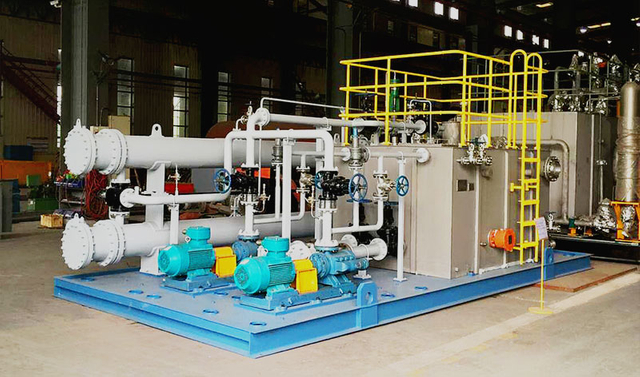

Lube Oil Unit (LOU)

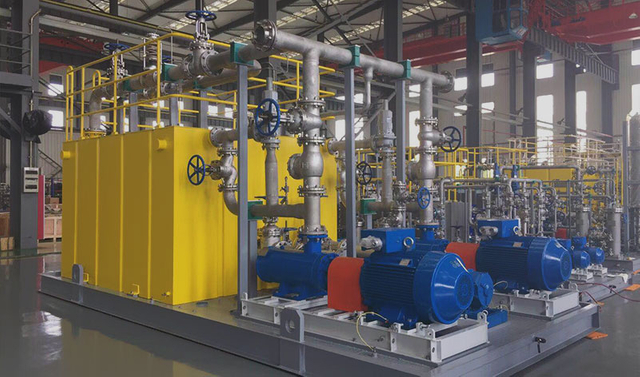

Lube Oil Unit (LOU)

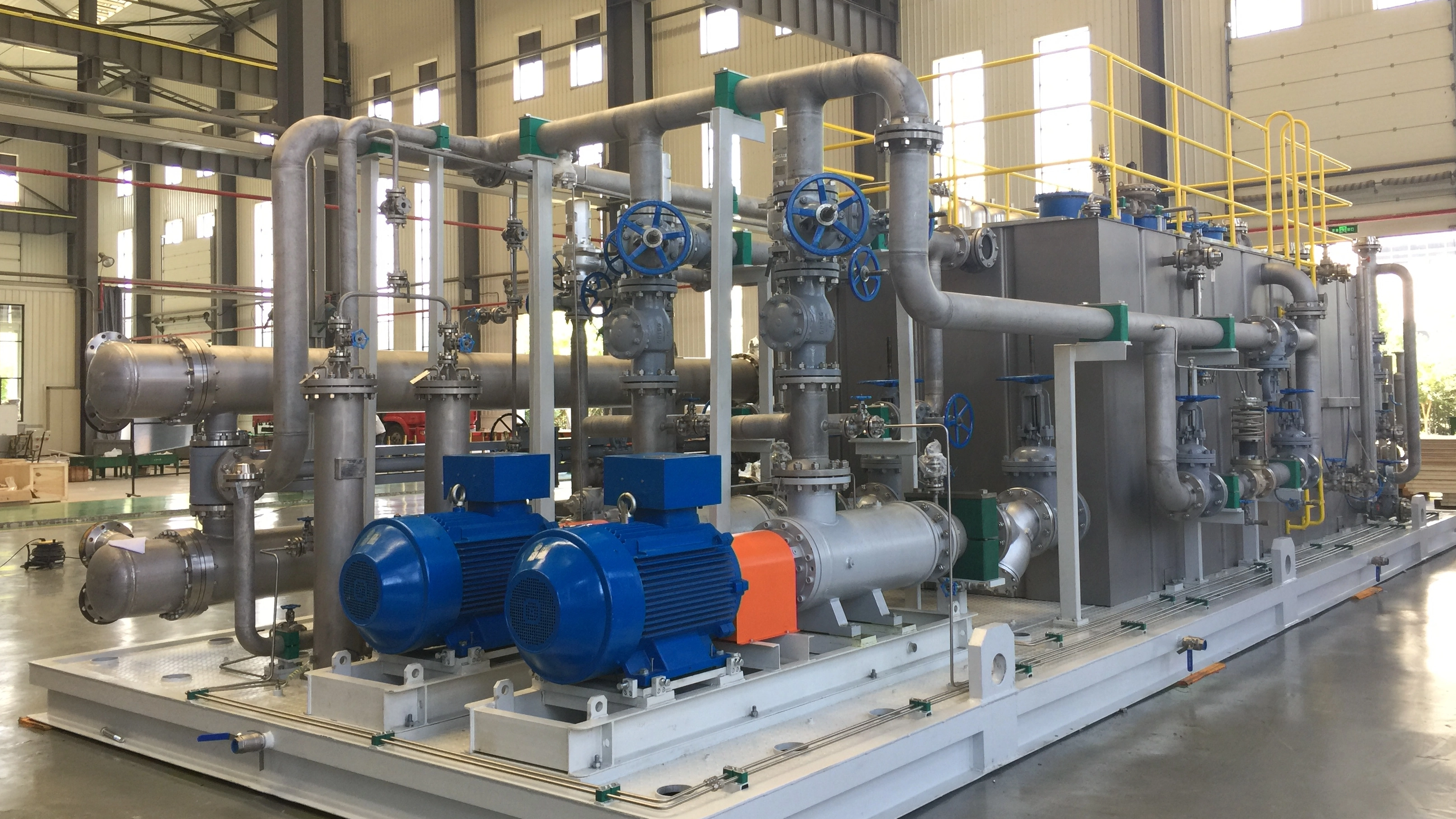

Lube Oil Unit (LOU)

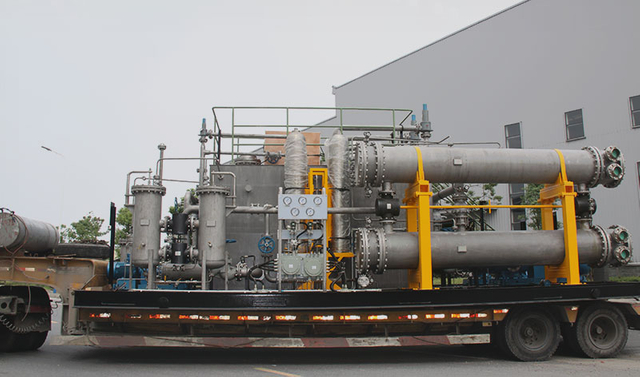

Lube Oil Unit (LOU) Manufacturing Factory
Lube Oil System
Application: Steam turbine, Gas turbine, Compressor, Fan, Bump
Standard: API614, ASME, TEMA, GB
Material: Carbon Steel, Stainless Steel.
Software: HTRI, ANSYS, CAD, SW-6

At HTAC, we specialize in lube oil systems designed to provide efficient lubrication and cooling for critical equipment such as steam turbines, gas turbines, compressors, and pumps. Our lube oil units are built to meet the stringent requirements of API 614, ASME, and TEMA standards, ensuring optimal performance in industrial environments.



Key Features of Our Lube Oil Unit



HTAC’s lube oil systems are engineered for rotating machinery to extend the life of components by reducing friction and wear. By supplying clean, cool oil, our systems help maintain smooth operation, minimize downtime, and prevent mechanical failure. Each lube oil console includes components like oil reservoirs, oil coolers, oil filters, and oil pumps, all designed to work together seamlessly, ensuring efficient oil circulation and heat dissipation.





Advanced Design and Materials



Our lube oil units are manufactured using high-grade materials such as carbon steel and stainless steel, providing durability and resistance to corrosion. The systems are designed using advanced software like HTRI, ANSYS, CAD, and SW-6 to optimize performance. With oil flow rates ranging from 4 L/min to 2055 L/min, and pressure ratings up to 35.5 Bar, HTAC’s lube oil systems are suitable for a variety of applications, from power plants to industrial compressors.



Applications and Configuration



HTAC’s lube oil systems are designed for a wide range of industrial applications, including power generation, oil & gas, and petrochemicals. The lube oil system in a steam turbine plays a critical role in lubricating bearings, cooling the turbine, and ensuring reliable operation. Our systems are also engineered to handle control oil, cooling oil, and jacking oil functions, making them a versatile solution for any turbomachinery environment.



Comparison of Lube Oil Systems


Feature HTAC Lube Oil System Other Brands
Application Steam turbine, Gas turbine, Pump Limited to specific equipment
Standards API 614, ASME, TEMA Varies
Materials Carbon Steel, Stainless Steel Carbon Steel
Oil Flow Rate Up to 2055 L/min 1000 L/min
Pressure Rating Up to 35.5 Bar 20 Bar
Software HTRI, ANSYS, CAD Basic design tools
Cooling Method Shell and tube oil cooler Air-cooled systems



Benefits of HTAC Lube Oil Systems


  • Efficient Lubrication: Our systems deliver oil at precise flow rates and temperatures to ensure optimal lubrication for bearings and other critical components.
  • Heat Dissipation: The integrated shell and tube oil coolers effectively remove heat from the oil, maintaining system efficiency.
  • Durable Design: Engineered with high-quality materials, our lube oil consoles are designed to withstand harsh industrial environments.
  • Easy Maintenance: The modular configuration allows for easy maintenance and replacement of components such as oil filters, pumps, and coolers.
  • Compliance with Standards: All of our systems are manufactured and tested in compliance with API 614, ensuring reliability and safety.


Applications in Power Plants



Lube oil systems are crucial in power plants, particularly in steam turbines, where they provide the necessary lubrication for turbine bearings and gears. The lube oil system in a power plant operates continuously to prevent overheating and mechanical wear, ensuring long-term performance and efficiency. Our systems are also suitable for gas turbines, compressors, and other high-speed rotating machinery.





HTAC’s lube oil systems are designed to meet the most demanding industrial requirements, providing reliable lubrication, cooling, and filtration to protect your critical equipment. Whether you are operating a steam turbine, gas turbine, or compressor, our lube oil units are the perfect solution to enhance performance and reduce downtime.
