Since 2006, we have been approved as a qualified supplierto internationally renowned turbine manufacturers includingElliott, Baker Hughes, Siemens, Everllence, MHI and DoosanSkoda, delivering numerous domestic and overseas projects.Our products are short listed by major end users including ADNOC, SABIC, Saudi Energy, KPC, Petrobras and others.

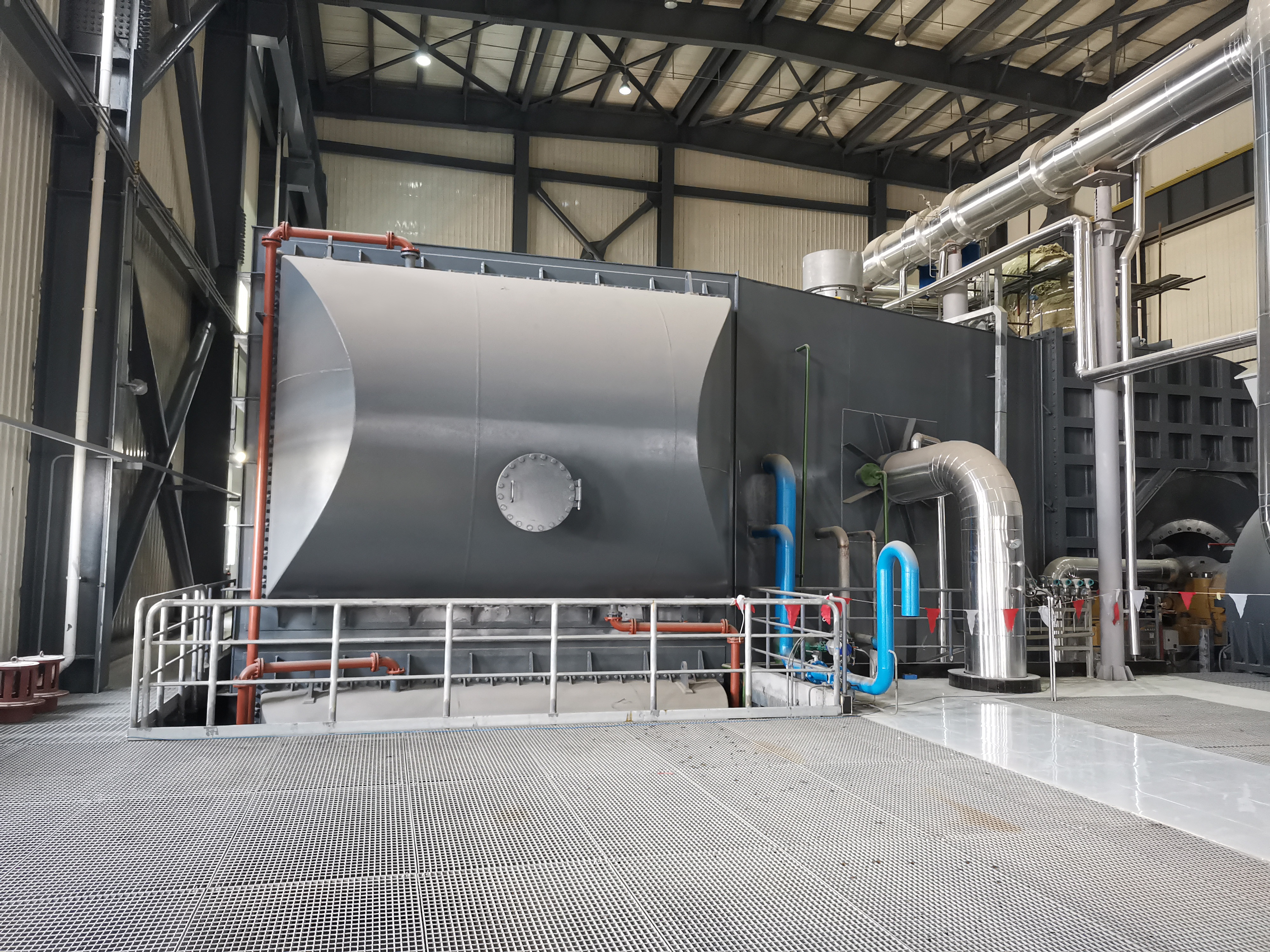

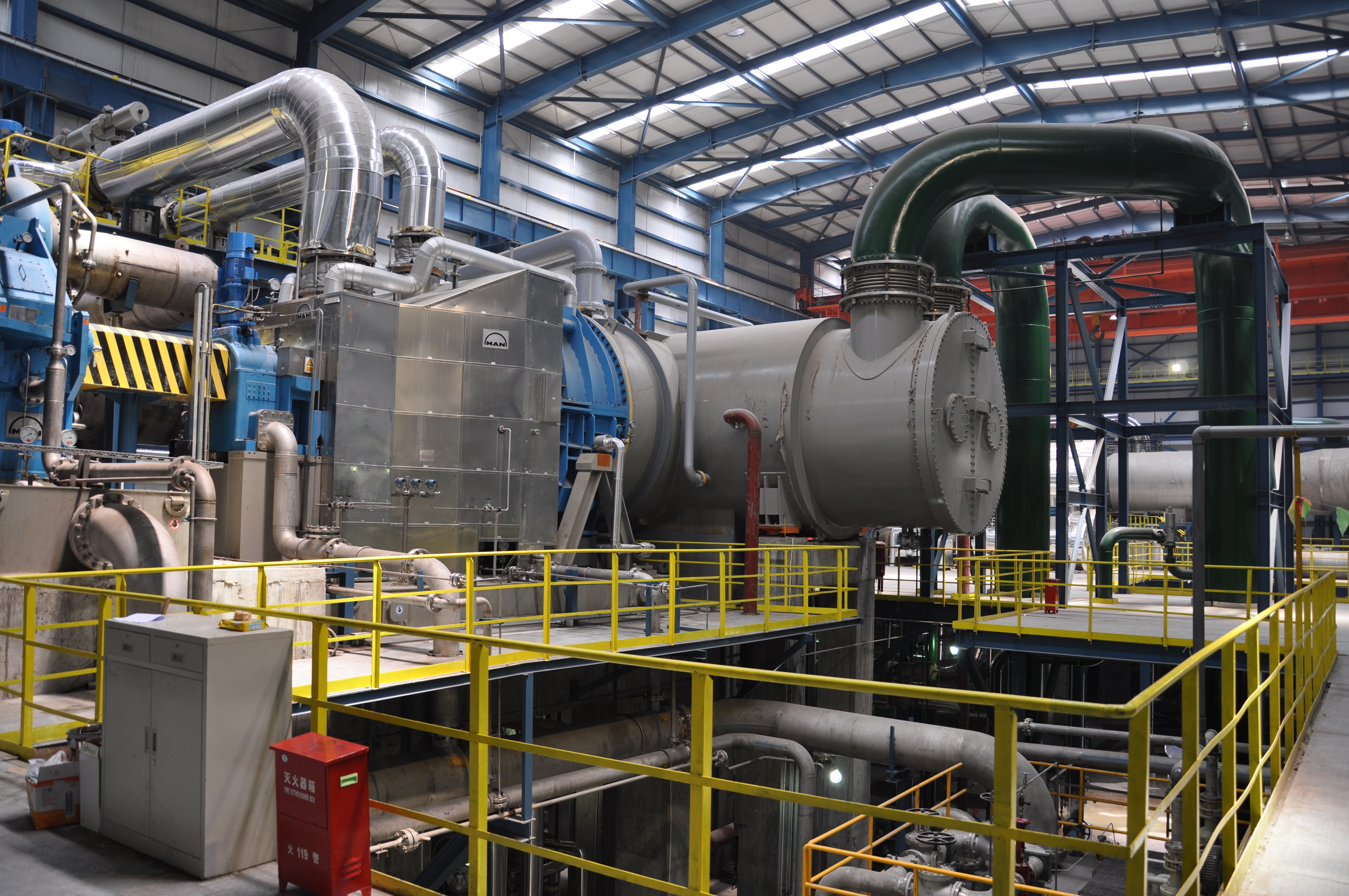

Water Cooled Condensing Unit
Type: Cylinder, Rectangular Exhaust Orientation: Axial, Side, Downward, Upward Standard: HEI2629、JB/T10085、ASME BPVCVI1I-1、TEMA、GB150 Material of tube bundle and tube sheet: Cooper alloy, stainless steel, duplex stainless steel, titanium alloy, carbon steel, and so on. (Decided by the condition of cooling water) Advantage: Compact structure & high heat exchange efficiency Software: Solid-works, PV Elite, ANSYS,、CAESAR II
Condenser heat-transfer area
100㎡~80000㎡ Can be customized
Matching steam turbine power
1 MW~1000 MW
Design vacuum
5kPa(a) Can be customized
Dissolved oxygen in condensate
Deoxygenated solution: <=7 ug/L
Technical Features and Advantages:
Technical Advantages: With 60 years comprehensive experi-ence in steam turbine complete set engineering, we adopt PVElite, ANSYS and CAESAR Il for stress analysis of equipmentand pipelines. Our deeply coupled design for condensingsystem and main unit delivers industry leading performance invacuum level, terminal temperature difference and subcoolingdegree. We hold multiple national patents.
High efficiency and energy saving: Patented tube bundlelayout achieves favorable flow field simulation, rational steamdistribution, high condensation efficiency and low flowresistance.
Flexible design: Condensers can be customized in square orcircular form, supporting axial and multi direction radial steamexhaust. Turbine connections can be rigid, flexible or vacuum
balanced to meet diverse layout requirements.
Material selection: Critical components adopt corrosionresistant materials including TP304/TP316L, titanium tubesand composite tube sheets. Stainless steel and titanium heatexchange tubes are mainly applied for power generationservice; copper alloy or carbon steel tubes are available forpetrochemical service. We have extensive experience indesigning and manufacturing condensers with various tubematerials, with a design service life >30 years.
Extensive track record: Supplied surface condensers for over3,000 steam turbine units. Products are exported to over 50countries including the United States, Belgium, Japan, SaudiArabia, the United Arab Emirates, Australia, Russia, Qatar,Mexico and Indonesia. We hold the ASME U stamp certificateand possess rich practical experience for CE, CU TR, IBR, ASand other certification implementations.
