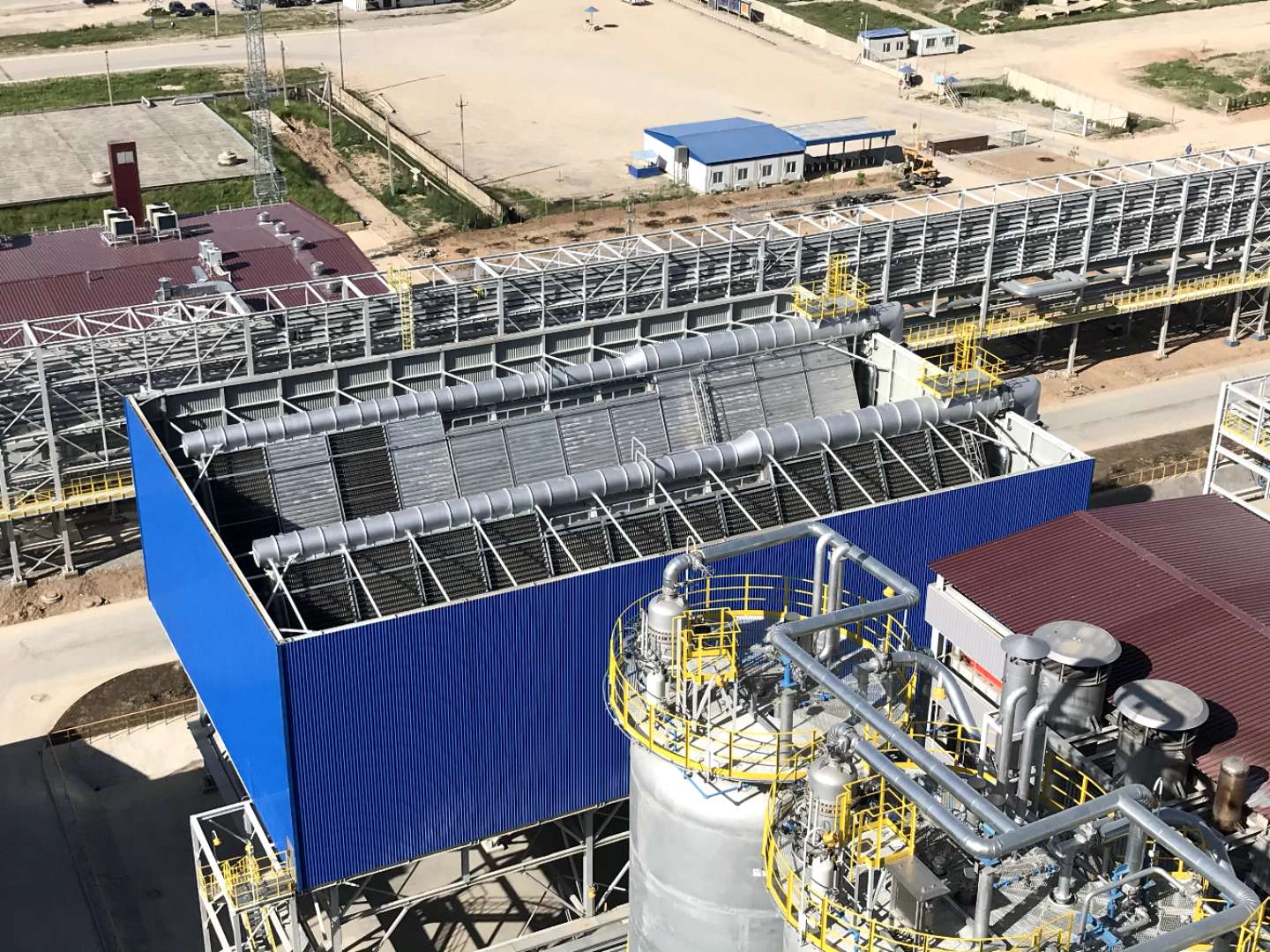

we have proven experience in offshore condensing-systemcomplete-set equipment and certified-project execution.Heat-transfer base tubes can be supplied in carbon-steel,aluminum, copper alloy and stainless steel, adapting to differ-ent environments and harsh operating conditions. Ourair-cooling-system products are short-listed by globalend-users such as ADNOC, SABIC, Petrobras and KPC,with extensive experience in overseas-project design andcomplete-set manufacturing.
Type: Single row, Multi-row ,MIX hybrid structure Technology: Jord & Independent R&D Standard: HEI、API661、ASME VIII-1、GB 、EN Software: HTRI，Tekla, CAESAR II, SOLIDWORKS,STAAD PRO , PV
Technical Parameter
Exhaust flow rate
6t/h~500t/h
Fan diameter
1.5 m~12m
Bundling length
3.7 m~ 14.5 m
Design pressure
0.1 MPa (FV) ~ 0.35 MPa (G)
Environmental design temperature
24°C~50°C
Minimum environmental design temperature
-52°C
Technical Features and Advantages:
The air-cooled condenser technology is mature, featuring anindependent, proprietary computing system; the companyalso possesses the capability to design and manufacturesingle-row, multi-row, and MIX-type air-cooled condenserconfigurations. These solutions are suitable for a wide rangeof industries-including power generation, air separation, oilrefining, and the chemical sector-as well as for operating indiverse and challenging climatic conditions,such as coastal,high-altitude, cold-region, or desert environments, demon-strating a strong track record both domestically and interna- tionally. Comprehensive full-lifecycle services covering design, manufacturing, and commissioning, including:
Engineering Design & Optimization: Based on processparameters, plant layout and meteorological conditions,complete ACC type-selection, layout, thermal and structural optimization.
Complex-environment Adaptability: Provide dedicatedanti-freezing, sand-resistance and anti-corrosion solutionsfor severe cold, high-altitude, desert and coastal conditions.
Intelligent Monitoring & O&M: Remotely monitor keyoperating parameters, detect trends of vibration, fouling andleakage to support optimized maintenance, cleaning andoverhaul.

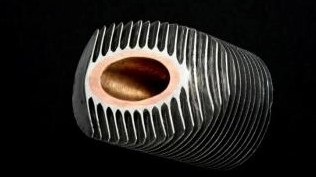

Multi-row Extruded Finned Tubes
According to the API661 standard： 1.The fins are tightly fitted to the base tubes, ensuring stable heat transfer performance. 2.Excellent corrosion resistance. 3.The parallel-flow bundle utilizes heat exchange tubes withthree different finning ratios; the counter-flow bundleemploys heat exchange tubes with larger diameters -combining enhanced performance with frost protection. 4.Easy to maintain and clean; offers strong resistance to wind-blown sand erosion; can be installed at maximum 10 MPa high-pressure water cleaning. 5.Long service life of the equipment.

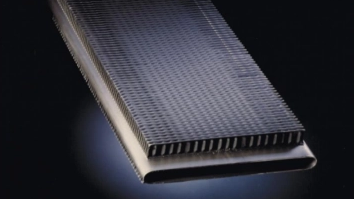

Single Row: Flat Finned Tubes
Designed in accordance with the HEI 3087 standard:
